1. Medical-Grade Stainless Steel Construction

Manufactured from ASTM-standard 304/316L Surgical Stainless Steel, compliant with ISO 10993 biocompatibility standards. It offers superior corrosion resistance (to bodily fluids and disinfectants) and supports high-temperature autoclaving (121°C steam), enabling safe reuse and reducing clinical consumable costs.

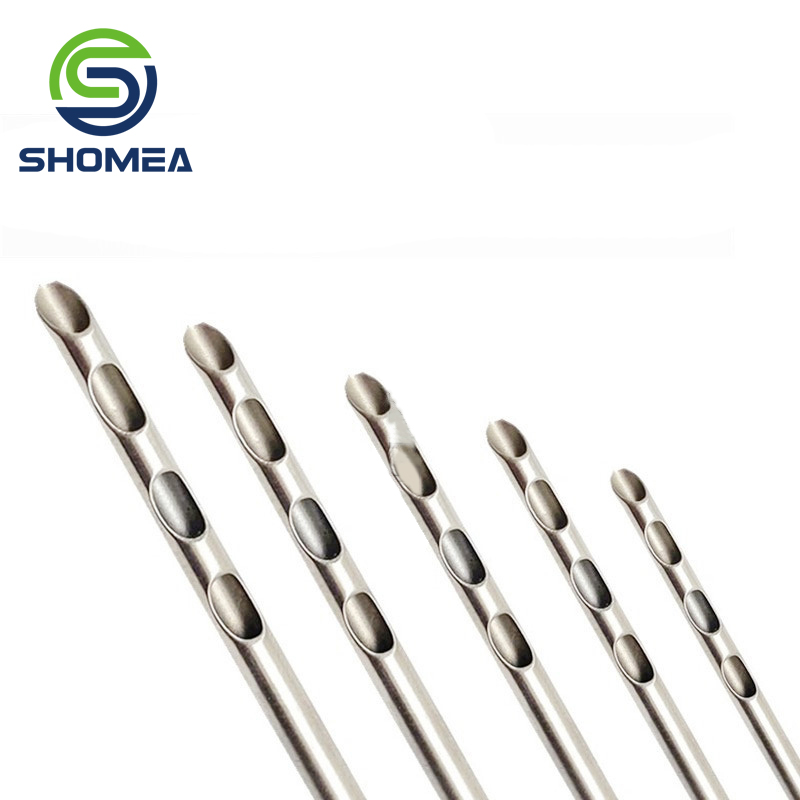

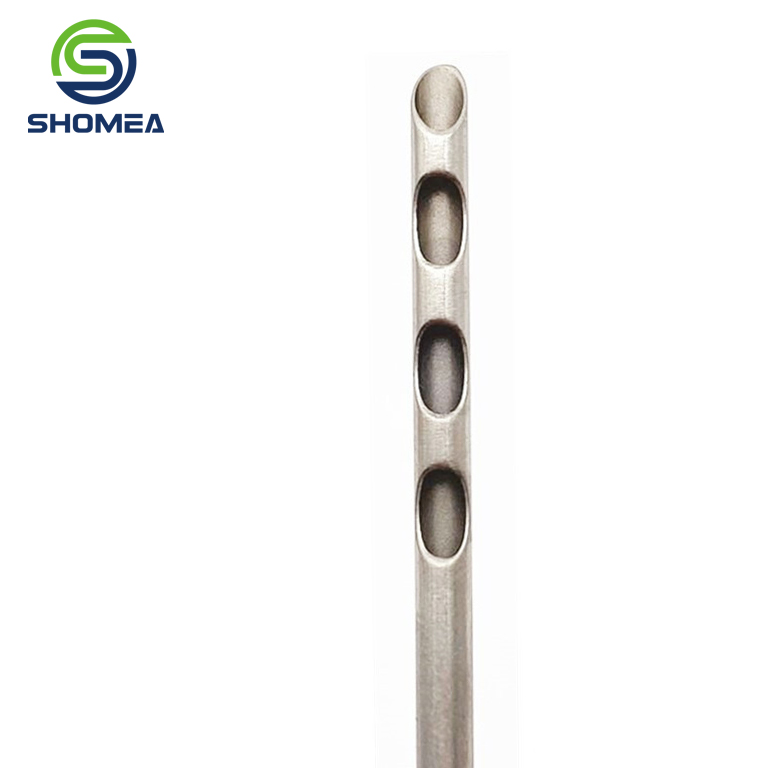

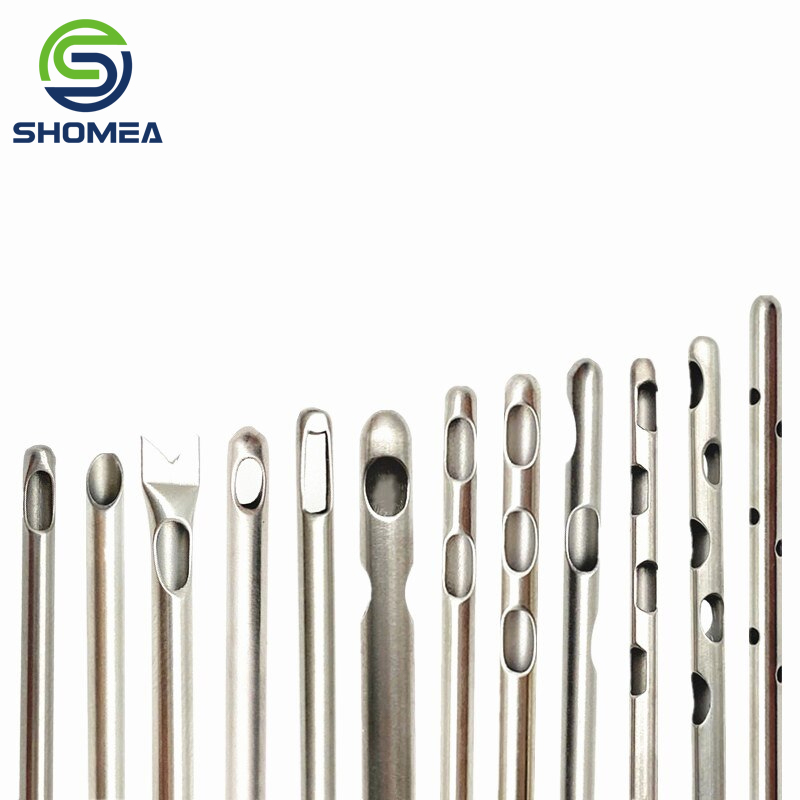

2. Multi-Side Port Design for Uniform Diffusion

The needle features multiple side ports along its shaft, allowing simultaneous fluid flow for uniform drug diffusion (e.g., local anesthesia) or rapid drainage (e.g., large-volume effusion). This design prevents single-port blockage and improves operational efficiency.

3. High Aspect Ratio for Deep Tissue Access

With an ultra-long, slender shaft (high length-to-diameter ratio) and precise grinding, the sharp bevel tip minimizes penetration resistance and trauma, enabling deep tissue access (e.g., fascia, muscle) with minimal collateral damage.

4. Precision Manufacturing & Consistency

Processed via CNC turning, ultrasonic cleaning, and electrolytic polishing, the inner wall is ultra-smooth (roughness Ra≤0.4μm) for unobstructed fluid flow. Side port dimensions and positions are controlled within ±0.01mm, ensuring batch-to-batch consistency.

5. Ergonomic Design for Ease of Use

Available with a smoothly tapered end or standard Luer lock interface for quick connection to syringes, drains, or catheters. The mirror-finished surface ensures smooth handling and reduces friction during insertion.

6. Regulatory Compliance & Traceability

Certified under ISO 13485 Quality Management System, with full product traceability. Compliant with FDA, CE, and NMPA regulations, facilitating compliance for global healthcare institutions.
